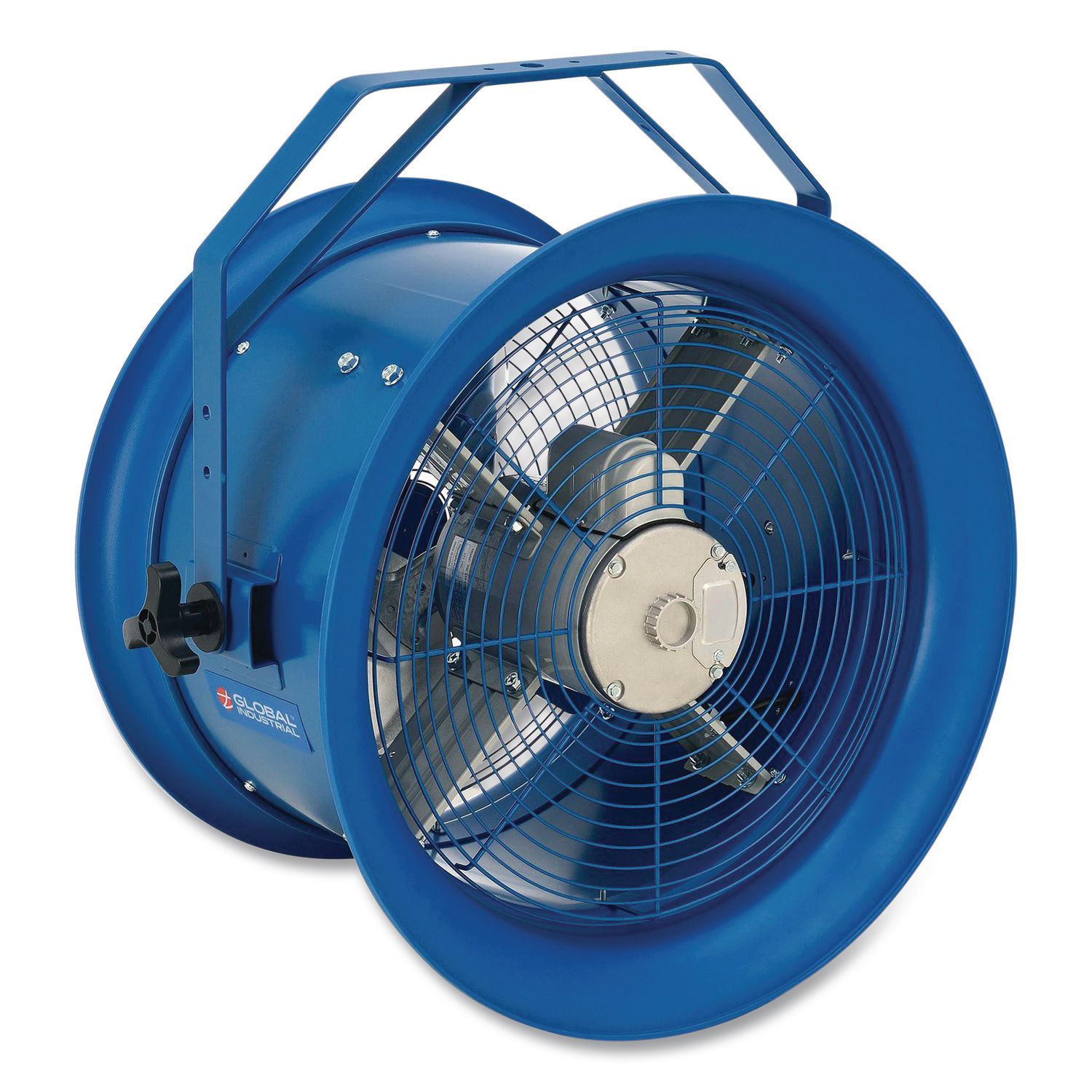

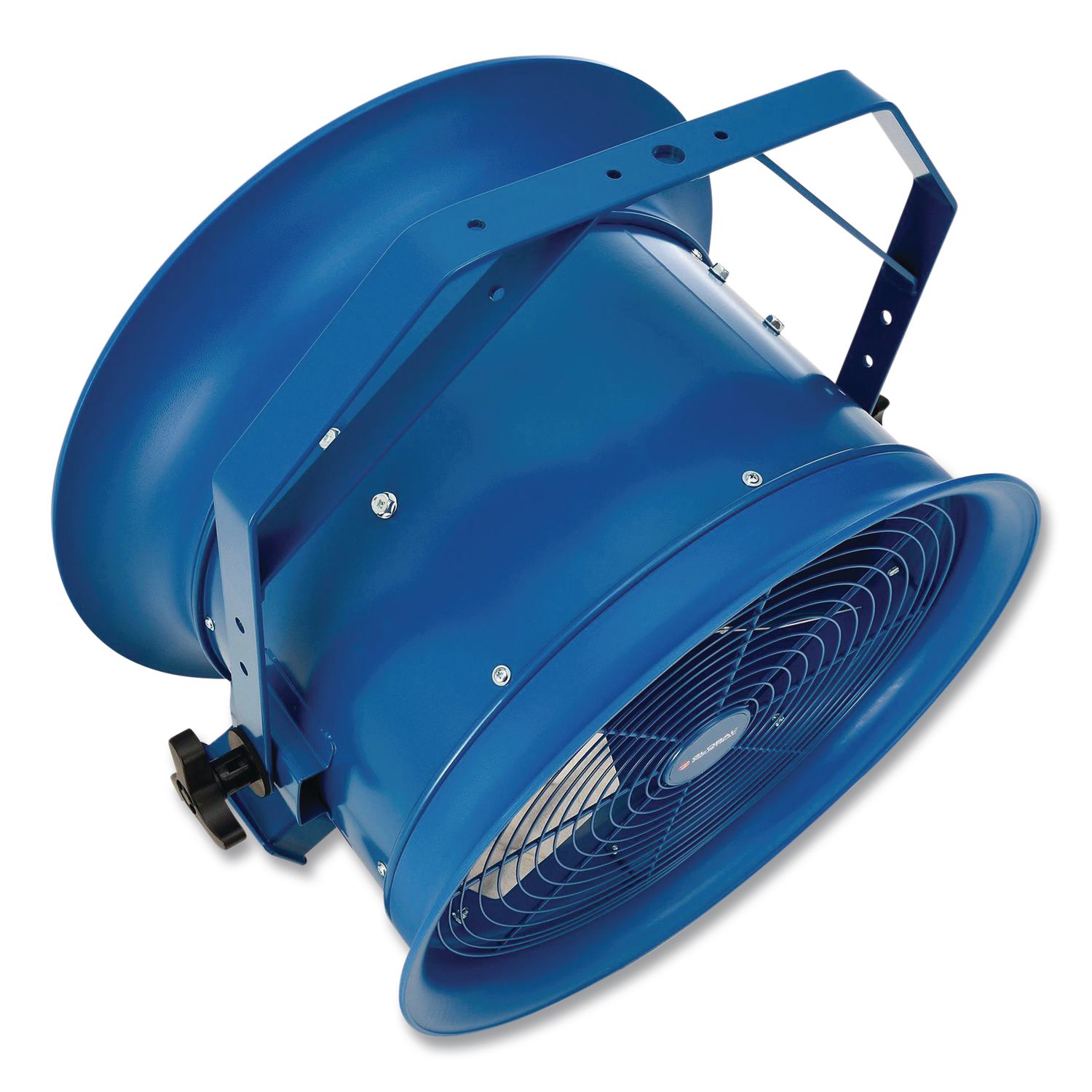

High Velocity Drum Fan with Yoke Mount, 18″, 1 Speed, Blue
$1,422.28

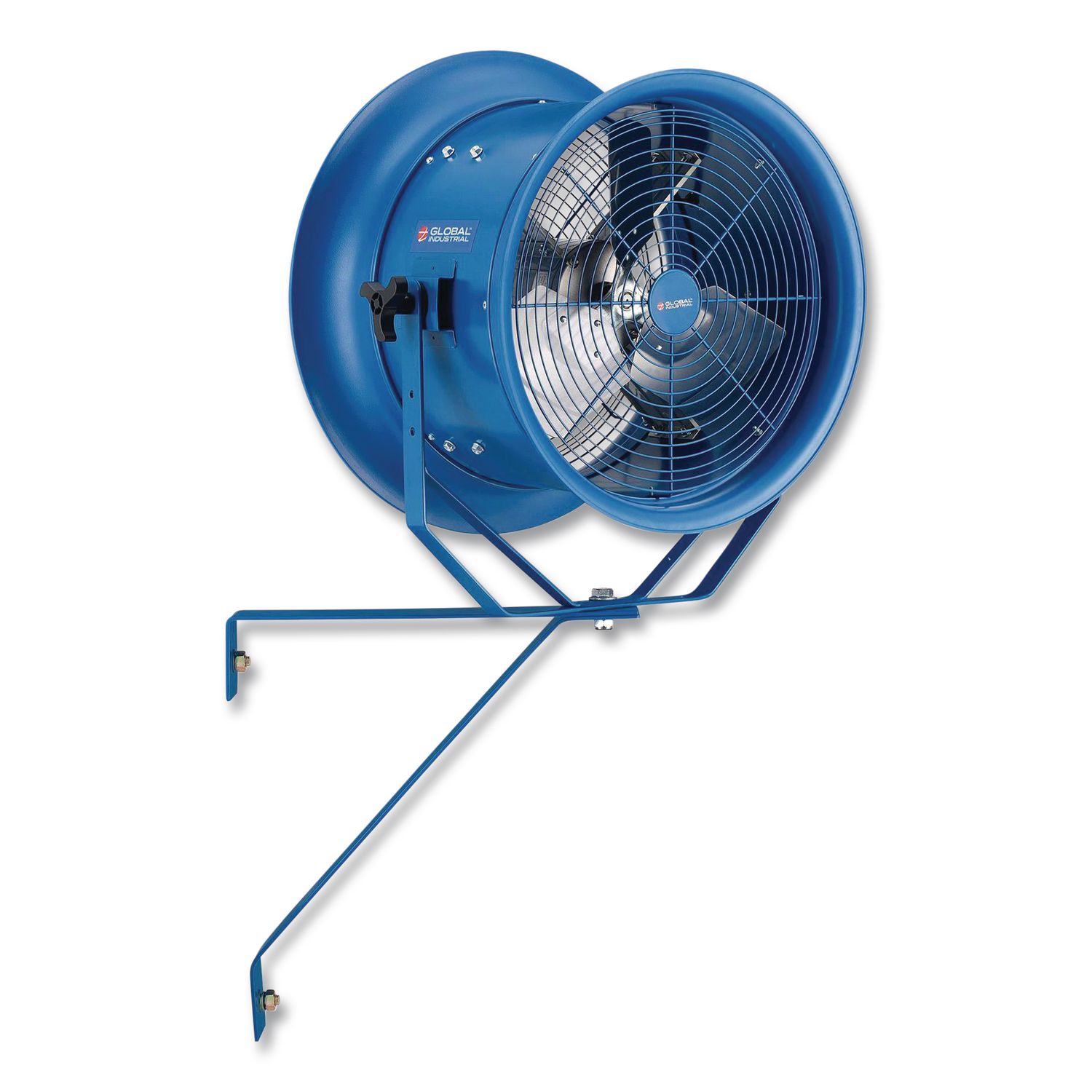

Designed to project large amounts of air long distances, High Velocity Drum Fan provides fresh air on loading docks, in warehouses, and down assembly lines, or to dry out after a flood and exhaust fumes. It has an efficient single-speed direct-drive TEAO (Totally Enclosed Air Over) 1/3 hp motor with three galvanized aluminum fan blades. It comes with a yoke mount bracket that allows the unit to be used freestanding for portability or mounted on a wall or column for more permanent placement. Additional kits are available separately for more mounting options. Fan Head Size: 18″; Fan Type: Industrial; Oscillates: No; Color(s): Blue.
100 in stock
| Air Flow (CFM): | 7,700 CFM |
|---|---|
| Amps: | 4.9 A/2.6 A |
| Blade Color: | Silver |
| Blade Material: | Galvanized Aluminum |
| Built-In Light: | No |
| CFM/Watts: | 520 W |
| Color(s): | Blue |
| Cord Length: | 12 ft |
| Depth: | 15.75" |
| Diameter: | 18" |
| Fan Head Size: | 18" |
| Fan Speed (RPM): | 1,720 RPM |
| Fan Type: | Industrial |
| Fan Width: | 18" |
| Global Product Type: | Industrial Floor Fans |
| Guard Color: | Black |
| Guard Material: | Steel Wire |
| Height (Max): | 27.2" |
| Horsepower: | 1/2 hp |
| Housing Color: | Blue |
| Housing Finish: | High-Impact Polyethylene |
| Housing Material: | High-Impact Polyethylene |
| Length: | 19" |
| Light Kit Included: | No |
| Material(s): | Metal/Polyethylene |
| Maximum Operating Speed (RPM): | 1,720 RPM |
| Maximum Room Size: | 3,000 to 4,500 sq ft |
| Motor Phase: | Single |
| Motor Size: | 1/2 hp |
| Motor Type: | Totally Enclosed Air Over |
| Noise Rating (dBA): | 73.4 dBA |
| Number of Blades: | 3 |
| Number of Speeds: | 1 |
| Oscillates: | No |
| Post-Consumer Recycled Content Percent: | 0% |
| Pre-Consumer Recycled Content Percent: | 0% |
| Product Biodegradability Indicator: | N |
| Product Compostability Indicator: | N |
| Style: | Yoke |
| Switch: | Built-In On/Off Rocker |
| Total Recycled Content Percent: | 0% |
| Voltage: | 115 V/208-240 V |
| Width: | 25" |
Additional information
| Weight | 62.15 lbs |
|---|---|
| Dimensions | 21.93 × 25.87 in |
